1. GNU GENERAL PUBLIC LICENSE

    1. Preamble
    2. TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION
  2. Prsentation du script

    1. Introduction
    2. Mesure effectue
    3. Comprendre le graphique
    4. Utilit du script
  3. Prparation de l'installation

    1. Tlchargement
    2. Systme ncessaire
  4. Installation

    1. Prambule
    2. Installation du script
    3. Configuration du cron
  5. Mise jour

    1. Depuis la version 3.x
    2. Depuis la version 2.0
  6. Script d'optimisation

    1. Prsentation
    2. Prcaution d'emploi
    3. Tlchargement
    4. Utilisation
  7. Mise a jour

    1. Version 3.2c - 18 octobre 2005
    2. Version 3.2b - 16 octobre 2005
    3. Version 3.2 - 8 octobre 2005
    4. Version 3.1 - 2 septembre 2005
    5. Version 3.0 - 11 aout 2005
    6. Version 2.0 - 20 avril 2005
    7. Version 1.5 - 11 mars 2005
    8. Version 1.2 - 2 mars 2005
    9. Version 1.1 - 9 janvier 2005
  8. Auteur et Contributeurs

    1. Auteur
    2. Contributeurs
  1. GNU GENERAL PUBLIC LICENSE

    1. Preamble

      The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public License is intended to guarantee your freedom to share and change free software--to make sure the software is free for all its users. This General Public License applies to most of the Free Software Foundation's software and to any other program whose authors commit to using it. (Some other Free Software Foundation software is covered by the GNU Library General Public License instead.) You can apply it to your programs, too.

      When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish), that you receive source code or can get it if you want it, that you can change the software or use pieces of it in new free programs; and that you know you can do these things.

      To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask you to surrender the rights. These restrictions translate to certain responsibilities for you if you distribute copies of the software, or if you modify it.

      For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the recipients all the rights that you have. You must make sure that they, too, receive or can get the source code. And you must show them these terms so they know their rights.

      We protect your rights with two steps: (1) copyright the software, and (2) offer you this license which gives you legal permission to copy, distribute and/or modify the software.

      Also, for each author's protection and ours, we want to make certain that everyone understands that there is no warranty for this free software. If the software is modified by someone else and passed on, we want its recipients to know that what they have is not the original, so that any problems introduced by others will not reflect on the original authors' reputations.

      Finally, any free program is threatened constantly by software patents. We wish to avoid the danger that redistributors of a free program will individually obtain patent licenses, in effect making the program proprietary. To prevent this, we have made it clear that any patent must be licensed for everyone's free use or not licensed at all.

      The precise terms and conditions for copying, distribution and modification follow.

    2. TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION

      0. This License applies to any program or other work which contains a notice placed by the copyright holder saying it may be distributed under the terms of this General Public License. The 'Program', below, refers to any such program or work, and a 'work based on the Program' means either the Program or any derivative work under copyright law: that is to say, a work containing the Program or a portion of it, either verbatim or with modifications and/or translated into another language. (Hereinafter, translation is included without limitation in the term 'modification'.) Each licensee is addressed as 'you'.

      Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of running the Program is not restricted, and the output from the Program is covered only if its contents constitute a work based on the Program (independent of having been made by running the Program). Whether that is true depends on what the Program does.

      1. You may copy and distribute verbatim copies of the Program's source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and give any other recipients of the Program a copy of this License along with the Program.

      You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee.

      2. You may modify your copy or copies of the Program or any portion of it, thus forming a work based on the Program, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions:

      a) You must cause the modified files to carry prominent notices stating that you changed the files and the date of any change.
      b) You must cause any work that you distribute or publish, that in whole or in part contains or is derived from the Program or any part thereof, to be licensed as a whole at no charge to all third parties under the terms of this License.
      c) If the modified program normally reads commands interactively when run, you must cause it, when started running for such interactive use in the most ordinary way, to print or display an announcement including an appropriate copyright notice and a notice that there is no warranty (or else, saying that you provide a warranty) and that users may redistribute the program under these conditions, and telling the user how to view a copy of this License. (Exception: if the Program itself is interactive but does not normally print such an announcement, your work based on the Program is not required to print an announcement.)

      These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the Program, and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Program, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it.

      Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or collective works based on the Program.

      In addition, mere aggregation of another work not based on the Program with the Program (or with a work based on the Program) on a volume of a storage or distribution medium does not bring the other work under the scope of this License.

      3. You may copy and distribute the Program (or a work based on it, under Section 2) in object code or executable form under the terms of Sections 1 and 2 above provided that you also do one of the following:

      a) Accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or,
      b) Accompany it with a written offer, valid for at least three years, to give any third party, for a charge no more than your cost of physically performing source distribution, a complete machine-readable copy of the corresponding source code, to be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or,
      c) Accompany it with the information you received as to the offer to distribute corresponding source code. (This alternative is allowed only for noncommercial distribution and only if you received the program in object code or executable form with such an offer, in accord with Subsection b above.)

      The source code for a work means the preferred form of the work for making modifications to it. For an executable work, complete source code means all the source code for all modules it contains, plus any associated interface definition files, plus the scripts used to control compilation and installation of the executable. However, as a special exception, the source code distributed need not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable.

      If distribution of executable or object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place counts as distribution of the source code, even though third parties are not compelled to copy the source along with the object code.

      4. You may not copy, modify, sublicense, or distribute the Program except as expressly provided under this License. Any attempt otherwise to copy, modify, sublicense or distribute the Program is void, and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance.

      5. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Program or its derivative works. These actions are prohibited by law if you do not accept this License. Therefore, by modifying or distributing the Program (or any work based on the Program), you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Program or works based on it.

      6. Each time you redistribute the Program (or any work based on the Program), the recipient automatically receives a license from the original licensor to copy, distribute or modify the Program subject to these terms and conditions. You may not impose any further restrictions on the recipients' exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties to this License.

      7. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not distribute the Program at all. For example, if a patent license would not permit royalty-free redistribution of the Program by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Program.

      If any portion of this section is held invalid or unenforceable under any particular circumstance, the balance of the section is intended to apply and the section as a whole is intended to apply in other circumstances.

      It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system, which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice.

      This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.

      8. If the distribution and/or use of the Program is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Program under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this License.

      9. The Free Software Foundation may publish revised and/or new versions of the General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns.

      Each version is given a distinguishing version number. If the Program specifies a version number of this License which applies to it and 'any later version', you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation. If the Program does not specify a version number of this License, you may choose any version ever published by the Free Software Foundation.

      10. If you wish to incorporate parts of the Program into other free programs whose distribution conditions are different, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally.

      NO WARRANTY

      11. BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE PROGRAM, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM 'AS IS' WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU. SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.

      12. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

  2. Prsentation du script

    1. Introduction

      Ce script relve diffrentes informations concernant votre connection sur votre livebox Inventel ou Sagem et aprs cela vous permet de surveiller votre ligne, but informatif mais aussi but de dpannage!

    2. Mesures effectues

      Toutes les 15 minutes:

      • Livebox Inventel: Mesure de la dure de la synchronisation
      • Livebox Sagem: Mesure de la dure de la connection
      • Mesure des changements d'adresse ip
      • Mesure des valeurs d'attnuation et de marge de bruit
      • Surveillance de la voIP.

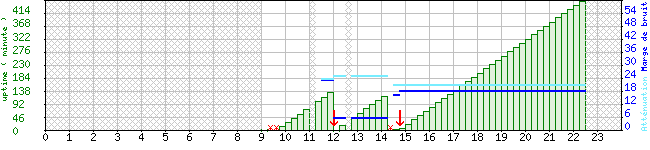

    3. Comprendre le graphique:

      Une fois les mesures effectues, le script les stocke en mmoire, et cre des graphiques, quotidiennement, vous permettant de les visualiser.

      Sur l'image prcdente nous pouvons voir:

      • La zone de mesure: zone non gris
      • l'heure de la mesure
      • Les barres vertes symbolisent la dure de synchronisation / connection mesure l'heure indique. En temps normal cela augmente constamment
        Vous pouvez lire la dure sur l'chelle de gauche.
      • les flches rouges indiquent un changement d'adresse ip
      • les croix rouge indiquent que la livebox n'tait pas synchronise au moment de la mesure
      • les barres bleus indiquent l'attnuation (bleu clair) et la marge de bruit (bleu fonc) mesures sur votre ligne par la livebox
      • les flches vertes indiquent un disfonctionnement de la voIP.
    4. Utilit du script

      • En temps normal, cela permet d'observer les changements d'adresse ip qui se font toutes les 22h ( ou 24h ) sauf bien sur dans le cas d'une ip fixe. Savoir quand vous serez dconnect, permet de s'organiser pour ne pas tre dconnect en pleine partie d'un jeu en ligne, ou en communication. Car le changement d'ip concerne aussi la VoIP
      • Par contre si vous avez des problmes de connection, vous pouvez voir: quand vous perdez la synchronisation, quelle est votre attnuation et votre marge de bruit (ce qui mesure la qualit de votre ligne).
      • Cela permet aussi de surveiller le status de la tlphonie par Internet (voIP).
  3. Prparation de l'installation

    1. Tlchargement

      Vous pouvez tlcharger ce script sur la page suivante: Tlcharger

    2. Systme ncessaire

      Ce script ncessite d'avoir un serveur http grant le php ainsi qu'une base SQL!
      Deux solutions s'offrent vous:

      • Installation pour les experts:

        Vous trouverez un tutoriel pour une installation sous Windows ici.

      • Installation pour les nophytes.

        Plusieurs logiciels vous permettent d'avoir un petit serveur web avec base de donne de facon trs facile.

        Pour EasyPHP, j'attends de voir la version 2, pour vous le reconseiller ou non.

      Un planificateur de taches / cron doit tre prsent

      L'extension GD doit tre active sous php.

  4. Installation

    1. Prambule

      Crer une table SQL sur votre serveur: 'uptime' ( par dfaut )
      Extraire le fichier zip dans un dossier vide ( qui doit tre plac dans le dossier 'web' de votre serveur) !

    2. Installation du script

      Executez le fichier install.php via votre navigateur.
      Ce fichier va installer les diffrentes tables SQL ainsi que gnrer le fichier de configuration du script.
      Faisons le point sur les diffrentes valeurs qui vous seront demandes. ( Plusieurs champs sont remplis avec des valeurs par dfaut )

      • Marque de la livebox: Au choix: Sagem ou Inventel
      • Nom du Serveur de Base de donnes SQL: par dfaut: localhost si la base de donnes est sur votre PC.
      • Nom d'utilisateur SQL: par dfaut: root ( configur lors de l'installation du serveur SQL )
      • Mot de passe SQL: ( configur lors de l'installation du serveur SQL )
      • Nom de votre Base de donnes: par dfaut: uptime
      • Adresse IP de la livebox:par dfaut: 192.168.1.1
      • Nom d'utilisateur de la livebox:par dfaut: admin
      • Mot de passe de la livebox:
      • Taille des graphiques: par dfaut: Grande ( largeur de 800px ) ou Petite ( largeur de 650px )
      • La Tlphonie par Internet ( voIP ) est elle active? A cocher si sous bnficiez de l'option Tlphonie par Internet
      • Dure du bail IP: ( sert la prvision de la prochaine dconnection ): Le bail ip est la dure durant laquelle une adresse IP vous est attribu. En gnral, cette dure est de 22h mais depuis la dernire mise jour de livebox Inventel, elle est passe 24h pour certaines personnes. Pour connaitre votre bail, regarder sur les graphs la frquence des changments d ip
    3. Configuration du cron

      Vous devez crer la tache suivant avec le planificateur de taches / cron:

      • Commande C:\.....\php.exe : chemin vers le fichier php.exe
      • Arguments C:\...\log.php chemin vers le script
      • Cocher: Excuter dans une fentre cache
      • Paramtres de temps: Choisir minutes: 0 - 15 - 30 - 45

      Note: Si jamais le cron ne fonctionne pas avec cette configuration, utilisez une adresse "l'ancienne":
      C:\Progra~1\easyph~1\www\log.php

  5. Mise jour

    1. Depuis la version 3.x

      Mettez de cot le fichier config.php, puis vider le rpertoire, extraire le nouvel archive et remettre le fichier config.php.
      Il ne reste plus qu'a lancer la mise a jour en accedant via votre navigateur web au fichier update.php.

    2. Depuis la version 2.0

      La procdure est la mme que pour une installation complte sauf qu'il faut cocher la case Mise a jour depuis v2.0 ?? lors de l'xecution de install.php

  6. Script d'optimisation

    1. Prsentation

      Ce script est prvu pour optimiser la table SQL et aussi corriger les enregistrements ralises avec les versions antrieurs la 1.5. L'interprtation qui en est faite peut se rvler inexacte . Notamment au niveau du changement d'ip!

    2. Prcaution d'emploi

      Ce script va modifier tous les enregistrements de la table 'log' et donc gnrer un trs grand nombre de requte SQL.
      Il est conseill de faire au pralable une sauvegarde de la table 'log'!
      D'autre part ce script va utiliser vote machine (disque dur surtout) de facon trs importante pendant un instant trs bref, il est donc conseill de ne rien faire d'autre pendant l'excution du script!

    3. Tlchargement

      Vous pouvez tlcharger ce script sur la page suivante: Tlcharger

    4. Utilisation

      Pour utiliser ce script il vous suffit de le placer dans le rpertoire ou se situe dj le reste du script puis de taper dans votre navigateur l'adresse du script: http://locahost/uptime/optimise.php normalement. Ce script n'est excuter qu'une seule fois.
      Toutefois vous pouvez 'optimiser' rgulirement vos tables SQL via phpmyadmin

  7. Mise a jour

    1. Version 3.2c - 18 octobre 2005

      • Correction d'un bug li l'affichage de la voIP. Meme les valeurs correctes dclanchaient un affichage.
      • La plage de marge de bruit et d'attnuation couverte passe 0-67db au lieu de 0-60db prcdement.
    2. Version 3.2b - 16 octobre 2005

      • Correction d'un disfonctionnement qui empchait le script de fonctionner correctement avec php 4.
      • Correction d'un bug dans update.php
    3. Version 3.2 - 8 octobre 2005

      • Ajout de la possibilit de choisir son bail d'ip.
      • Possibilit de choisir en MySQL et MySQLi (PHP5 uniquement).
      • Surveillance du status de la voIP
      • Correction de l'inversion entre la marge de bruit et l'attnuation pour les Livebox Sagem. Un correctif pour les anciens enregistrements est disponible ici.
      • Ajout d'un systme d'enregistrements des erreurs SQL ( dossier logs ).
      • Corrections de bugs mineurs.
    4. Version 3.1 - 2 septembre 2005

      • Mise jour firmware Sagem 3202_24014C
      • Le changement d'ip se fait toutes les 24h sur les livebox Inventel.
      • Correction d'un bug dans le systme d'alerte mise jour
      • Amlioration de la protection du fichier d'installation
      • Correction d'un bug de calcul de l'uptime sur les livebox Sagem
    5. Version 3.0 - 13 aout 2005

      • Attention: L'installation se fait maintenant via la page install.php. ( Voir ici )
      • Attention: Tous les fichiers ont t modifis, si vous effectuez un mise a jour, il faut purger le rpertoire puis extraire avec le nouveau .rar
      • Nouvelle interface ( bas sur l'interface de la livebox Inventel)
      • Compatibilit livebox Sagem ajoute ( merci InKLy de ebsd.net )
      • Ajout d'un encart d'information indiquant:
        • Marque de la livebox
        • Firmware
        • Dure de synchronisation / connection actuele (selon la livebox et si synchronisation tablie).
        • Prvision de la prochaine dconnection sur la base thorique d'un changement d'ip toutes les 22h.
      • Non prise en compte des enregistrements ne correspondant pas une heure correcte lors de la gnration du graphique
      • Lors d'une mise a jour du firmware, le script se bloque et un message est affich sur la page d'accueil
      • Ajout d'une page permettant de rechercher les enregistrements d'un jour prcis.
      • La documentation est accessible sans pass par le site
      • Dtection de la prsence de la livebox l'ip indique.
      • Amlioration de la gestion des erreurs.
      • Ajout d'une alerte indiquant une nouvelle version du script.
    6. Version 2.0 - 20 avril 2005

      • Attention: Pour que se script fonctionne vous devez obligatoirement excuter au pralable 'optimise.php' ( voir ici ) puis 'maj.php' .
      • Attention: Tous les fichiers ont t modifis, si vous effectuez un mise a jour depuis une version 1.x, il faut purger le rpertoire puis extraire avec le nouveau .rar.
      • Ajout de la mesure de la marge de bruit et de l'attnuation de la ligne.
      • Optimisation du systme de gnration des graphiques ( moins de requtes )
      • Possibilit de choisir entre deux tailles de graphiques (configurable via le fichier config.php).
      • Le fichier graph.png n'est plus ncssaire.
      • Affichage de la dure maximale de synchronisation dja atteinte.
      • Affichage de la dure actuele de synchronisation.
      • Note: le fichier de configuration s'apple 'config.php' et non plus 'sqlconfig.php'.
    7. Version 1.5 - 11 mars 2005

      • Publication du script d'optimisation de la base SQL.
      • Optimisation des valeurs enregistres.
    8. Version 1.2 - 2 mars 2005

      • Mise en compatibilit firmware v5.01.11-fr
      • Deux chelles: minutes puis heures
    9. Version 1.1 - 9 janvier 2005

      • graph.php: affichage du changement d'ip
      • index.php: affichage possible des graphiques de plus de 7 jours
  8. Auteur et Contributeurs.

    1. Auteur

      Ce script a t concu et dvelopp par Jean-Sbastien H. alias ED, administrateur du site Livebox Script

    2. Contributeurs

      • InKly - Ajout du Support Sagem, beta-test
      • jackmc2 - Ajout de la surveillance voIP.
      • lalou - beta test

      Merci eux.



Documentation dit le 18/10/2005
